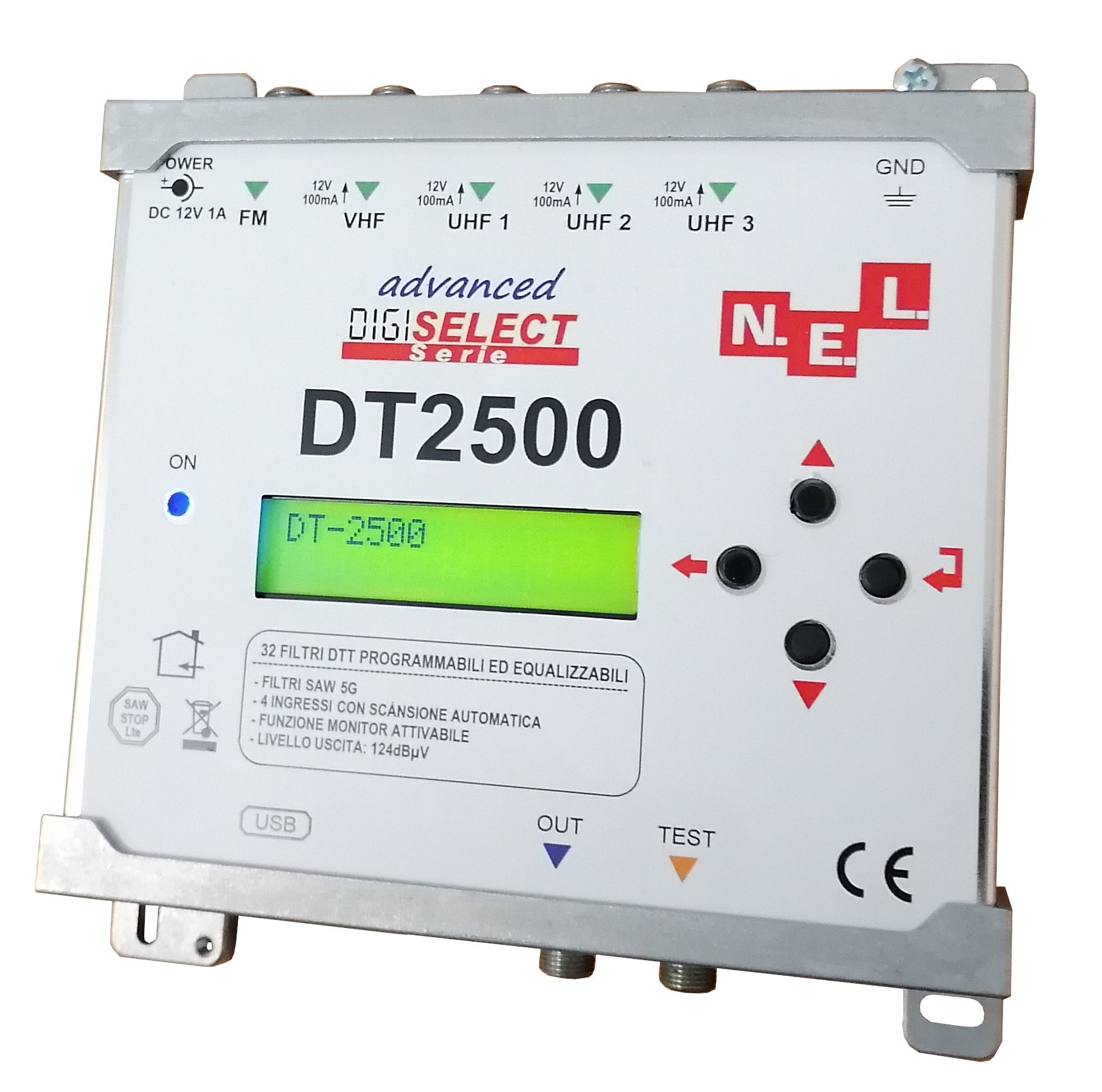

DT2500
The DT2500 is a multi-input programmable amplifier, it is a highly technological and functional product with 5G SAW filter. Following the company philosophy, the amplifier works with an external 12V 1A power supply which facilitates any maintenance. Undisputed shielding and heat dissipation are guaranteed by a robust stainless steel chassis, which can be firmly fixed to the wall or to a base via two solid die-cast brackets. Programming via keypad or with Android App makes any intervention simple and quick.
Technical Specifications
· 32 programmable and equalizable digital filters
· Inputs: 1 VHF, 3 UHF with independent automatic scanning
· 5G LTE filters with SAW technology
· Output level: 124dBμV (IM3 -35dBc)
· Filter monitoring function can be activated
· Integrated pre-amplifier and C.A.G. for each filter
· Remote power supply 12V 100mA max
· Internal conversion up to channel 69
· Intuitive programming from key-pad with LCD display
· Smart configuration via DT2500 APP for Android
Download

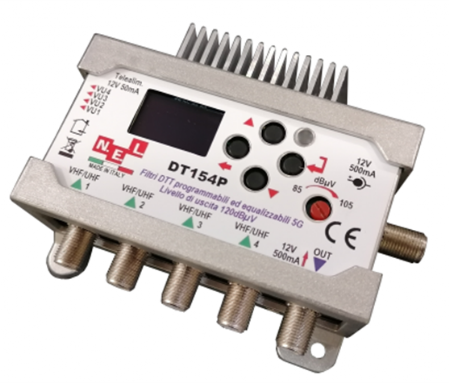

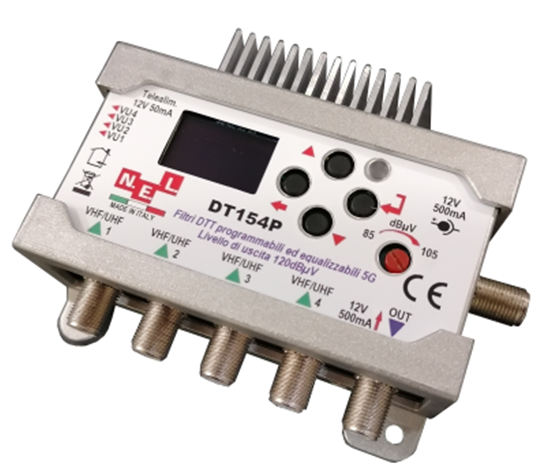

DT154P
The DT154P is the flagship among our programmable devices: compact, intuitive, powerful and with an excellent quality/price ratio, it is the product that has been most successful on the Italian market. Adequate shielding and heat dissipation are guaranteed by a strong chassis and two external heat sinks; it can be firmly fixed to the wall or to a base using two solid die-cast brackets. Programming, very quick and intuitive, takes place via keypad.
Technical Specifications
· 31 programmable digital filters with ACG
· 4 VHF/UHF inputs with one automatic scan· LTE 5G filters
· Reading in real time of channels input level
· Intermodulation distortion: 120dBµV (IM3 –35dBc)
· Output level adjustable manually
· Slope setting
· Filters monitoring function (<50dBµV)
· Max remote power 12V 50mA
· Conversion up to channel 69
· Intuitive programming from key-pad with OLED display
· Protection from ESD in all ports
· Powerable remotely through coaxial cable
· Strong die-cast chassis
Download

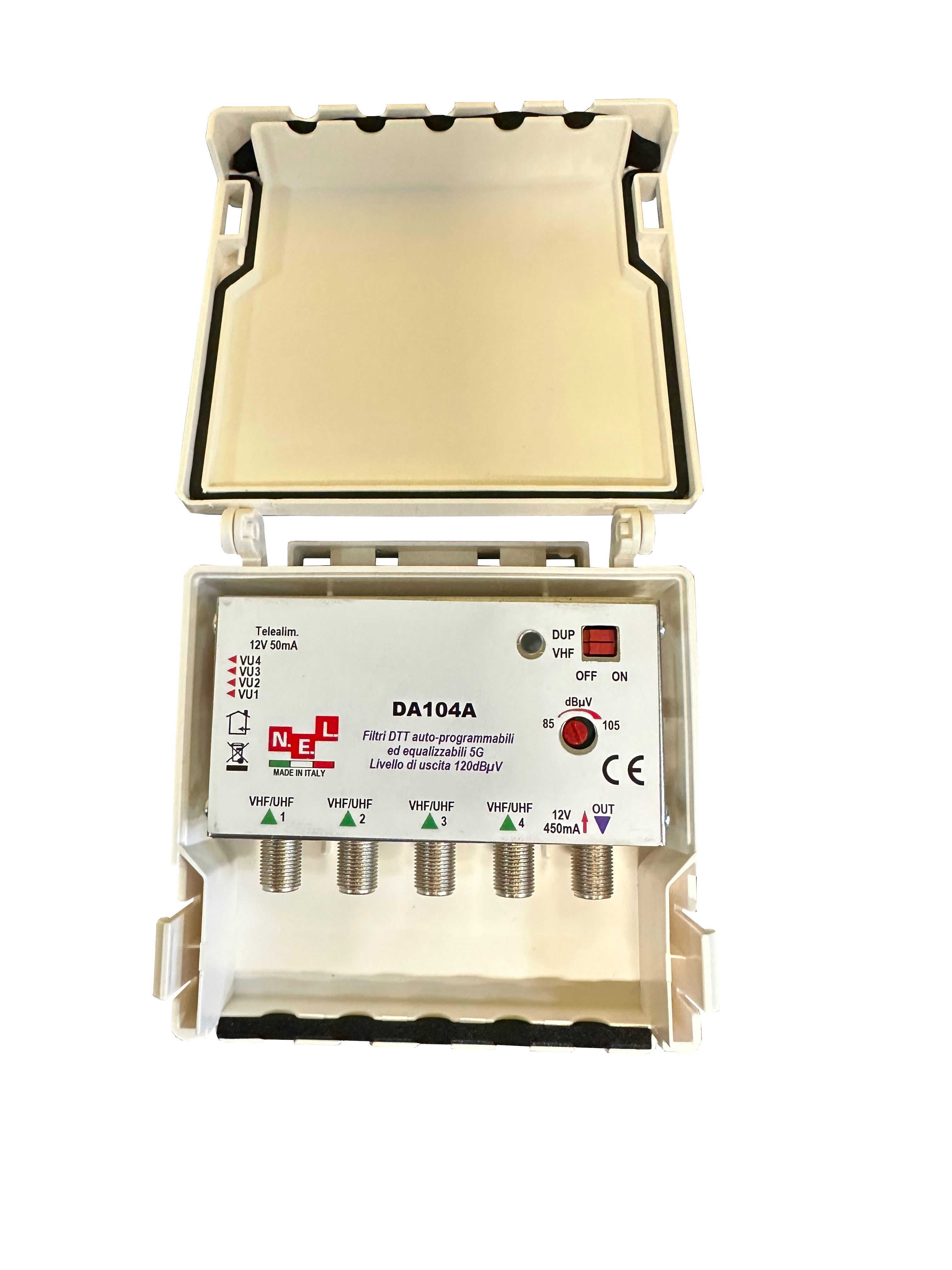

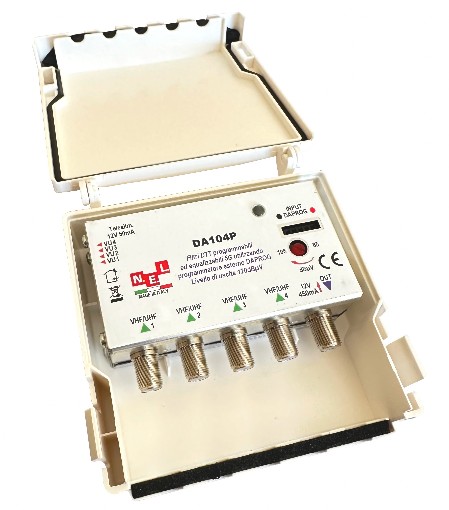

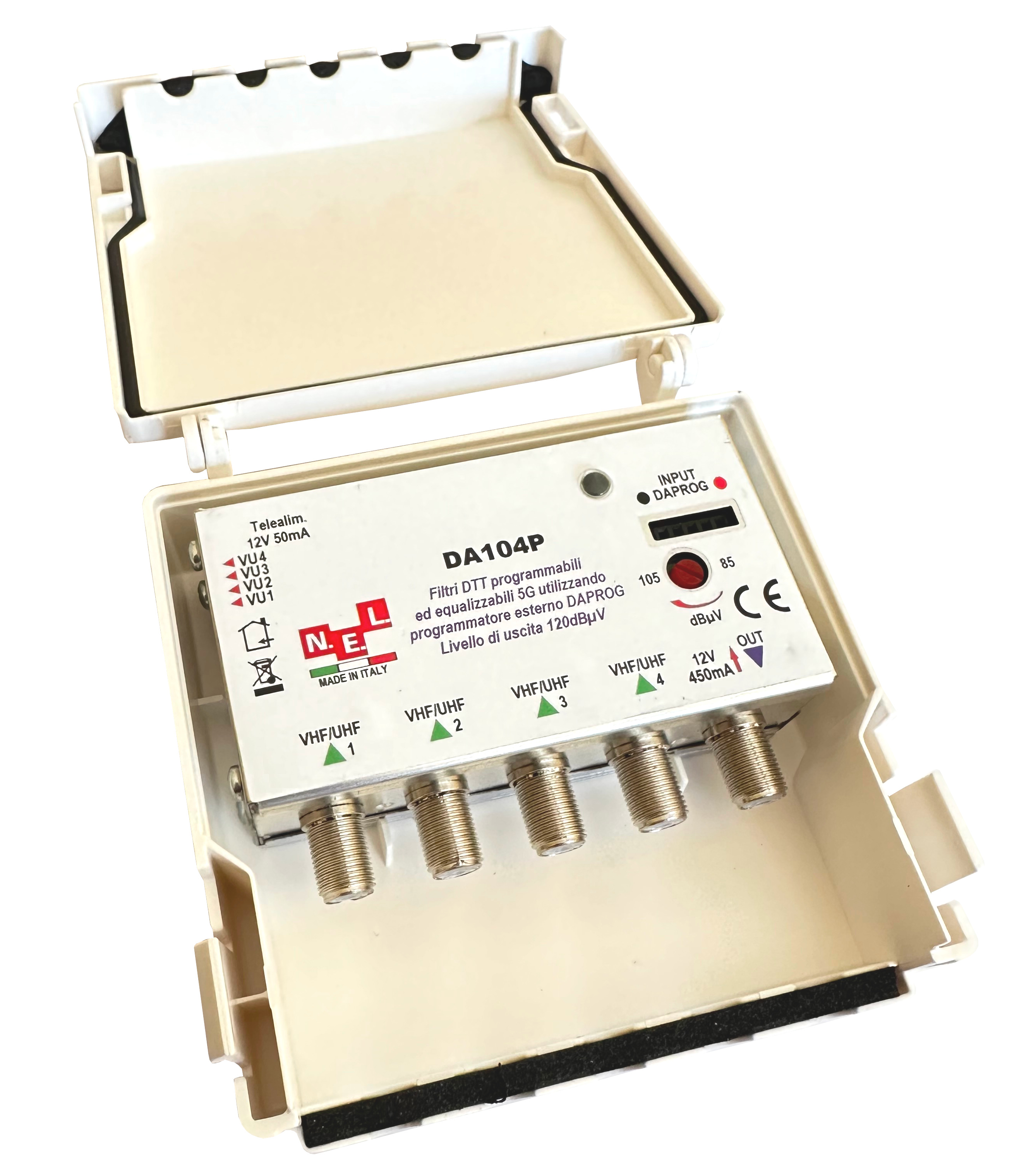

DA104P - DA104A
The mast programmable amplifiers were created to satisfy the requests of our customers who sometimes require an outdoor product with similar characteristics to the well established DT154P. Adequate shielding and heat dissipation are guaranteed by a robust stainless steel chassis and an external heat sink. The ABS box with IP53 protection rating, combined with the galvanized steel fixing kit, ensure long-lasting fixing and maximum protection from external atmospheric agents. The DA104P version must be programmed using the DAPROG programmer, in this way the same graphic interface and commands as the DT154P are guaranteed, with the sole limitation of a maximum of 16 insertable MUXes. The DA104A version is self-programming, by powering it via the output connector, it enters autoscan mode and up to 16MUX will be recorded. The possibility is given, via switch, to duplicate the same MUX that arrives from different directions, as it is typically occupied by different broadcasters.
Technical Specifications
· 16 programmable digital filters with ACG
· 4 VHF/UHF inputs with one automatic scan· LTE 5G filters
· Reading in real time of channels input level
· Intermodulation distortion: 120dBµV
· Output level adjustable manually
· Slope setting
· Filters monitoring function
· Max remote power 12V 50mA
· Conversion up to channel 69
· Powerable remotely through coaxial cable
· Protection from ESD in all ports
· Resistant ABS case with IP53 protection for outdoor installation
Download

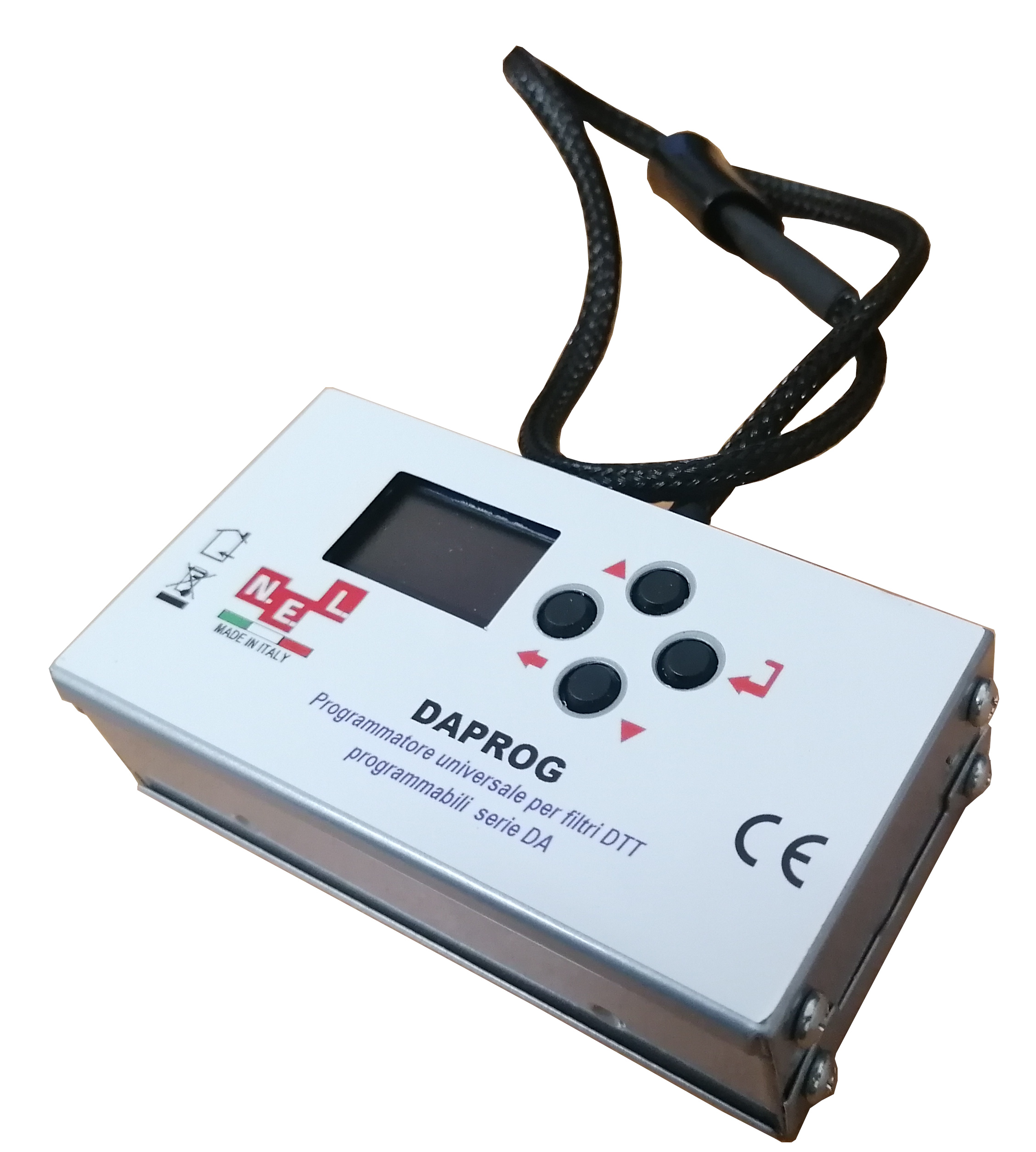

DAPROG
The DAPROG programmer is essential for programming the DA104P mast amplifier. Made of a strong stove-painted steel chassis, it allows, via the connection cable, to interface with the DA104P and carry out all the programming and exploit the functions as with a DT154P. Once programming is complete, simply disconnect the DAPROG and keep it for the next programming.
Technical Specifications
· OLED display and key-pad for programming
· Strong painted die cast chassis
· 5-pin connector with protective ABS cap
